Security Counters and Screens

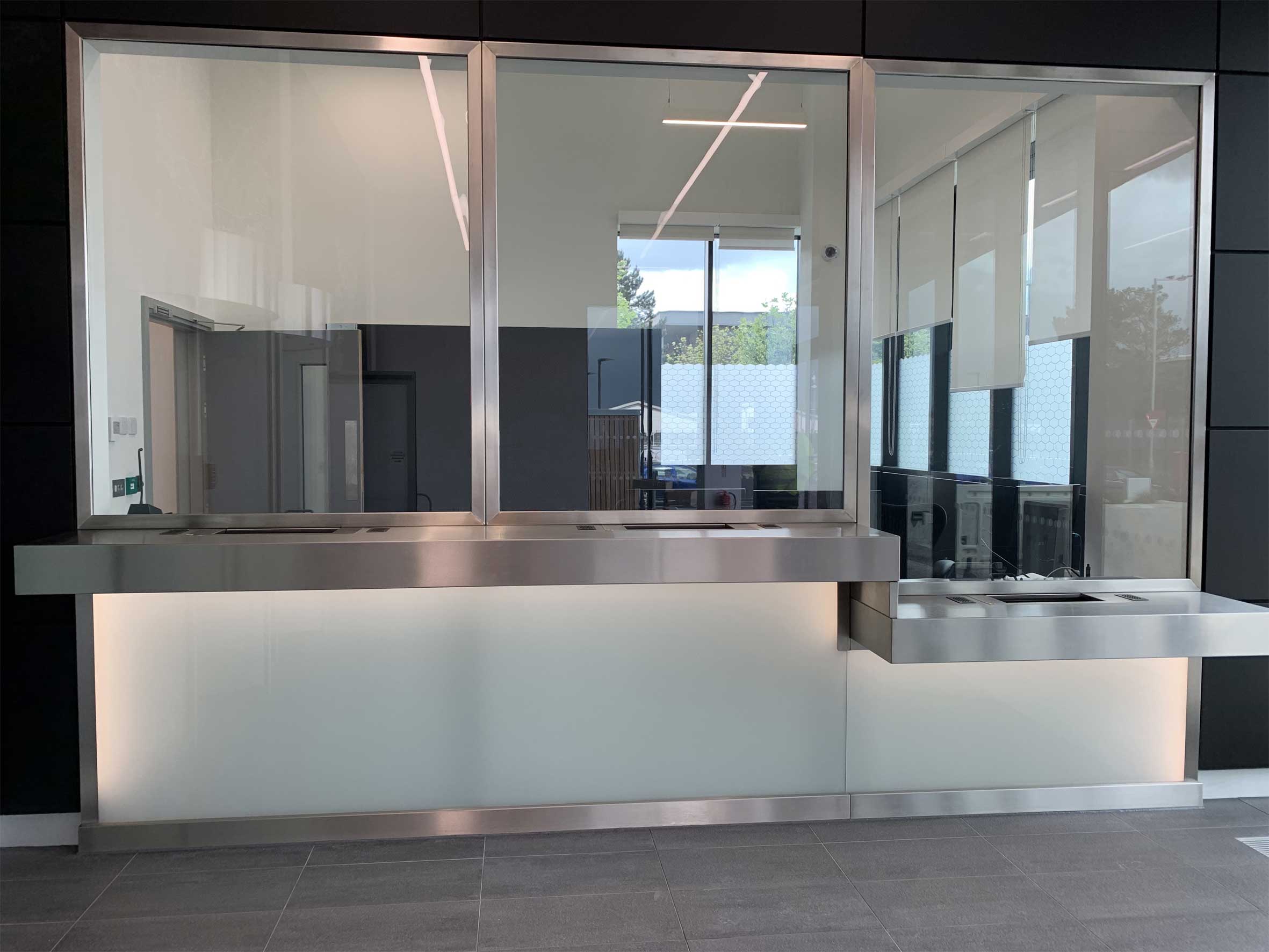

Bullet Resistant Counter and Screen Data Centre

Architectural Armour management have over 30 years experience of manufacturing physical attack and bullet resistant security counters and screens.  In that  time  we saw the trend of removing screens as banks , building societies and other cash handlers adopted an open plan desk to appear more customer friendly, recently that trend has been reversed with the re introduction of security counters and screens in many cities.  We have supplied screens to a diverse range of sectors including banks, building societies, credit unions , stadiums, consulates, jewellers, transport interchanges, secure receptions and many more.

Wether you requirement is just the screens or the whole counter and screen,  internal or external, physical attack, bullet resistant, blast or all three we are confident our UK manufactured security counters and screens will enable staff to safely and efficiently transact with customers and meet your security requirements.  We offer a design, manufacture and installation service, and by listening to our customers individual requirements we are able to provide bespoke counter and screen arrangements that meet your security needs.  To compliment our screens we offer a range of cash trays, scoops and transfer units.

bulletBullet Resistant

Ballistic glazing options include handgun specifications  BS EN1063; BR2, BR3, BR4, Rifle specifications BR5 & BR6 and Shot Gun SG1 & SG2 all of which are designed to meet the test classification in the table below.  Our Bullet Resistant Security Screens have been independently tested and certified to comply with both framing specification BS EN1522 and glazing specification.

hammer, physical Attack, Burglar, Intruder ResistantPhysical Attack

Physical attack resistant security screens are available with certified glazing options, which include BS EN 356 , P6B, P7B & P8B in both all glass and glass polycarbonate configurations.

explosion resistant proofBlast Resistant

Blast resistant screens options are available subject to site conditions, to acheive a blast rating the screens need to be tied into the buildings structure.

fire resistant ratedFire resistant

Fire resistant screens are an option. The need for transactions  to take place by nature requiring a pass through, usually by cash scoops, trays or drawers causes some issues. Yet fire tested bullet resitant trays have be accepted in fire screen systems we have installed.

For more information or a quotation please contact our offices on 01981 257000 or email info@architecturalarmour.com









SECURITY SCREENS ONLY

BULLET RESISTANT SCREENS

Our Bullet Resistant Security Screens have been independently tested and certified to comply with both framing specification BS EN1522 and glazing specification BS EN1063

Glazing

Ballistic glazing options include Spall Allowed and No Spall, for external applications they can be incorporated intro a DGU for thermal efficiency.  Each Security Screen is manufactured to meet the test classification in the table below.

Frames

All frames are bespoke made to customer requirements, available in satin stainless steel or polyester powder coated to a RAL colour of your choice.

                 9mm Luger              EN 1063 BR2     EN 1522/3 FB2   Bullet Resistant Screen

             .357 Magnum          EN 1063 BR3     EN 1522/3 FB3   Bullet Resistant Screen

              .44 Magnum             EN 1063 BR4     EN 1522/3 FB4    Bullet Resistant Screen

 Shot Gun               EN 1063 SG2     EN 1522/3  FSG   Bullet Resistant Screen

 5.56 x 45mm       EN 1063 BR5     EN 1522/3 FB5    Bullet Resistant Screen

 7.62 x 51mm         EN 1063 BR6     EN 1522/3 FB6    Bullet Resistant Screen

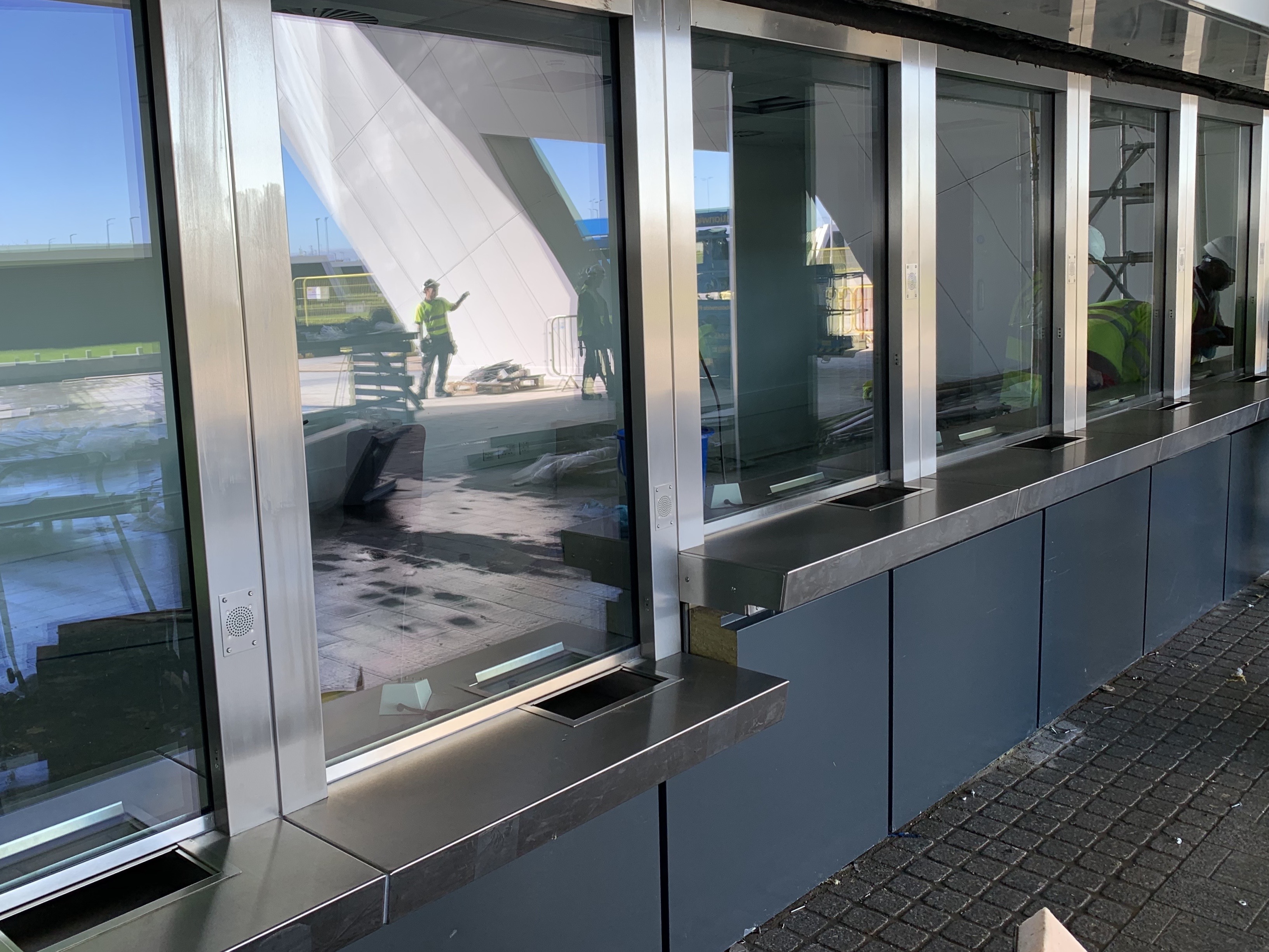

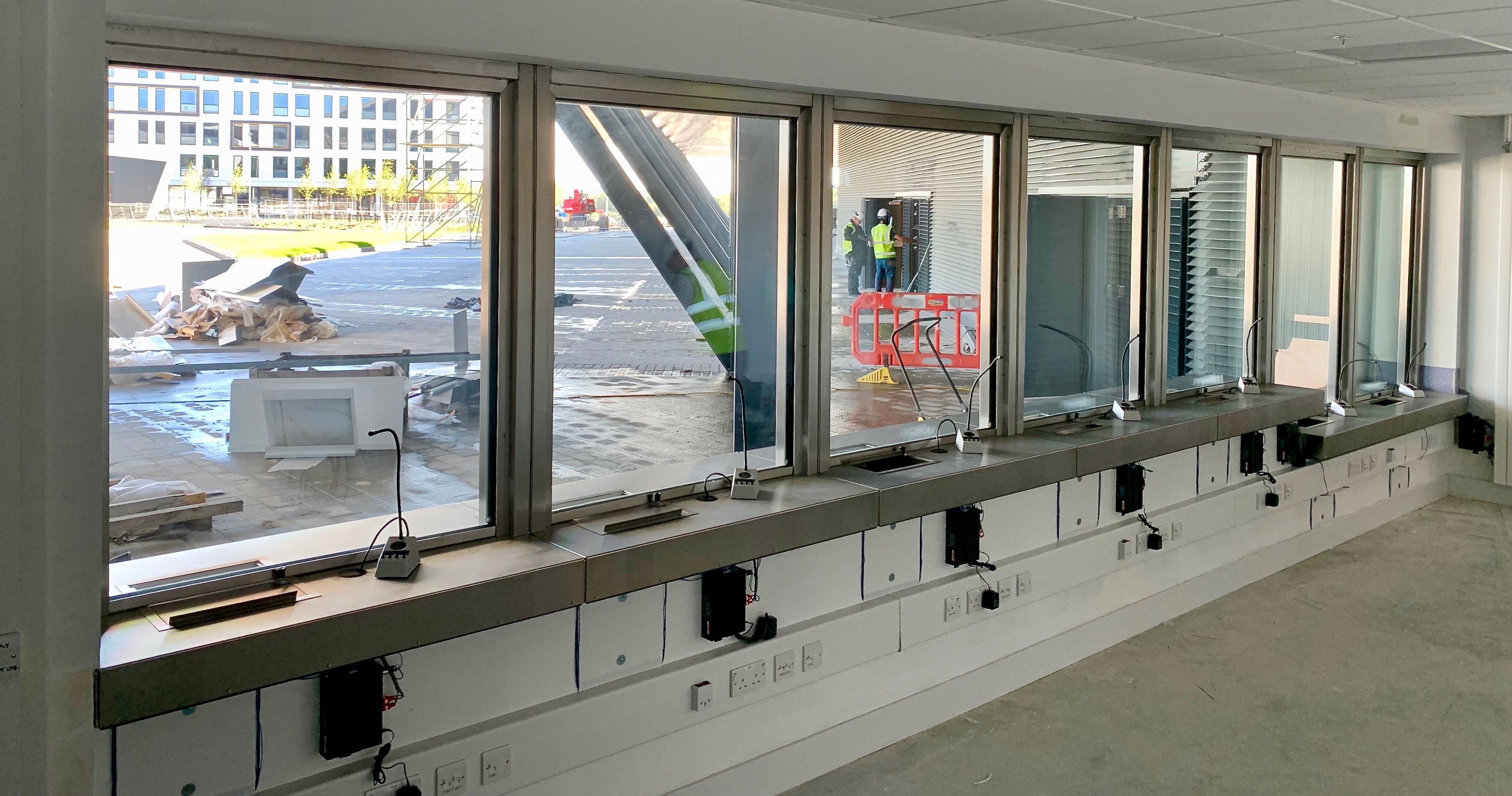

     Conference Centre Ticcket Office Glazed Screens   Conference Centre   Ticcket Office Glazed Screens

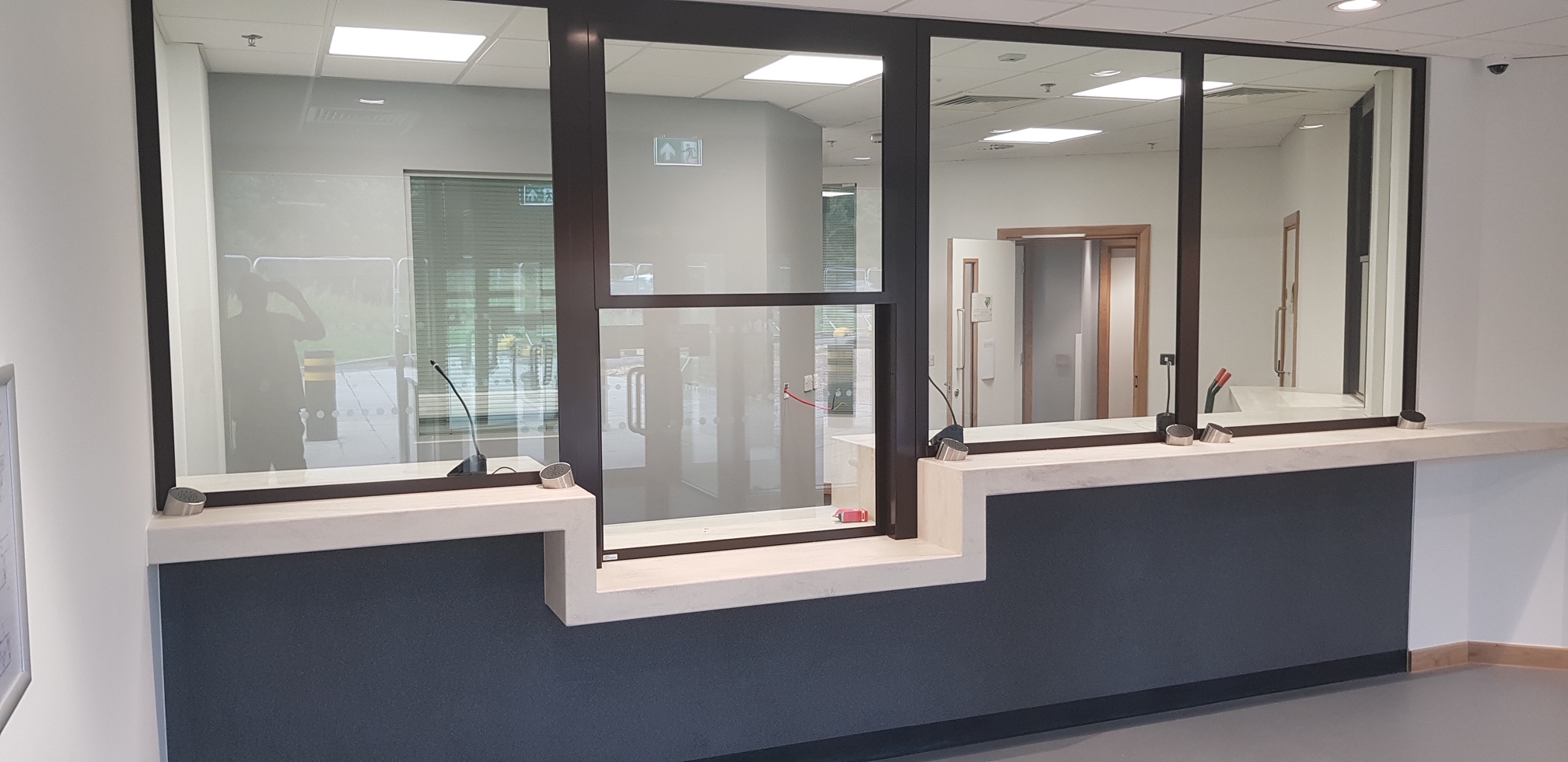

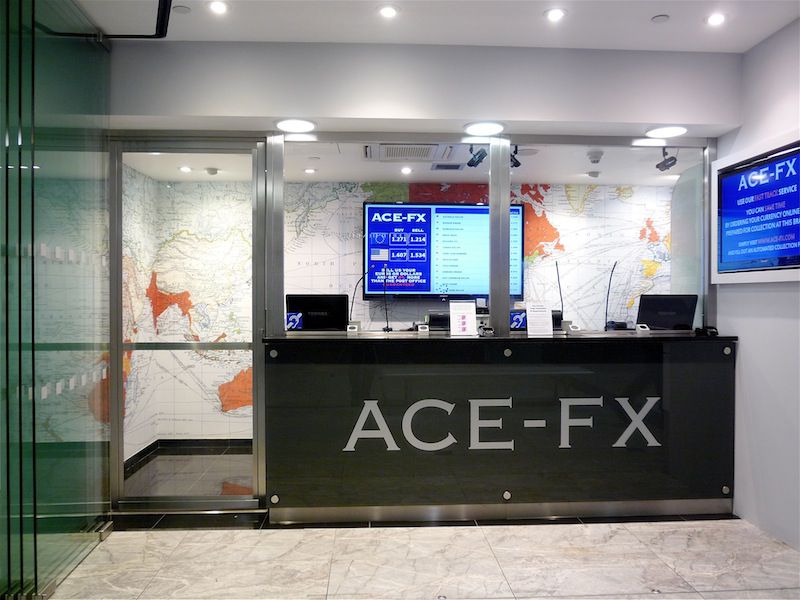

              Bureau de change security counter & screen    secure reception screen

PHYSICAL ATTACK RESISTANT SCREENS

Physical attack resistant security screens are available with certified glazing options, which include BS EN 356 & LPS 1270 in both all glass and glass polycarbonate configurations.

Glazing

Popular Attack resistant glazing options are EN356 higher resistance levels, P6B, P7B and P8B.  All of which are manufactured to withstand a specified number of mechanically delivered blows from a Sledgehammer & Axe.

Frames

Like the bullet resistant versions all frames are bespoke made to customer requirements, available in satin stainless steel or polyester powder coated  to a RAL colour of your choice.  Unlike the bullet resistant screens the attack resistant frames can incorporate open speech apertures in the mullions to allow a natural speech path between secure and attack face .

To compliment our screens we offer a range of Cash Scoops and Trays and an Electric BTU.

   Attack Screens

Complimentary Products

Stock items



Cash Scoops and Trays                                             A range of Cash and Document Transaction Trays and Scoops

Cash Transfer Unit ( Electric )                              To securely pass larger volumes of cash or valuables. Unit has electrically interlocked doors

Bullet Boards                                                             A selection of ballistic grade walling sheets

Bullet Resistant Door Viewer                          A full range of bulletproof / Resistant Door Viewers / Peepholes / Spyholes BR4 to BR6

All of the above can also be manufactured in bespoke sizes.

Bespoke items

Bullet Resistant Glass                                        Bulletpproof / Resistant Armoured glass to resist from handguns to rifles

Blast Resistant Glass                                          Laminated Blast resistant Glass to incorporate into Blast Windows and Doors

Attack Resistant Glass                                       Manual Attack resistant glass.  Certified to EN356 or LPS 1270

Fire Resistant Glass                                            E30 to EI120 , Physical and Ballistic options available

Bullet Resistant Windows                              A range of ballistic rated windows manufactured to quality standard ISO 9001.

Blast Windows                                                     Blast windows to protect against terrorist attacks and longer petrochemical explosions

Attack/Intruder Resistant Windows       EN356 rated attack resistant windows protecting against planned or surprise attacks.

Fire Resistant Windows                                  Available as fire rated only or combined with our bullet, attack or blast windows.

Bullet Resistant Doors                                    A range of fully tested and certified ballistic single and double doors.

Blast Resistant Doors                                     Steel manufactured doors offering blast protection to buildings

Attack/Intruder Resistant Doors              LPS1175 rated doors for multi-purposes.  Manufactured bespoke to customers requirements.

Security Fire Doors                                          A combination of fire protection and security rated doors made to measure.

For our range of technical specifications please click on relevant headings below

Ballistic Technical Specifications

EN 1063               Glass in Building - Security Glazing - Testing and Classification of Resistance Against Bullet Attack

UL 752                   Standard for Bullet-Resisting Equipment

BS 5051                Bullet-resistant glazing - Part 1:  for interior use- Part 2: for Exterior use

NIJ 0108.01      US National Institute of Justice Standard-Test and Certification for Ballistic Resistant Materials

EN 1522/3          Windows, doors, shutters and blinds - Bullet resistance - Requirements and classification /Test method

Blast Specifications

GSA-TS01:2003     Standard Test Method for Glazing and Window Systems Subject to Dynamic Overpressure Loadings

EN 13541                   Glass in building - Security glazing - Testing and classification of resistance against explosion pressure

EN 13123-2               Windows, doors and shutters - Explosion resistance - Requirements and classification

ISO 16933:2007  Glass in Building -- Explosion-Resistant Security Glazing -- Test & Classification for Arena Air-Blast Loading

Fire Specifications

UL 10C           Positive Fire Pressure Tests of Door Assemblies

EN 1363-1    Fire resistance tests –Part 1: General Requirements

EN 1364-1     Fire resistance tests for non-load-bearing elements – Part 1: Walls

BS 476 Part 22     Fire tests on building materials and structures

EN 1634-1   Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware

Manual Attack  Specifications

EN 1627   Pedestrian door-sets, windows, curtain walling, grilles and shutters - Burglar resistance - Requirements and classification

LPS 1270   Intruder Resistant Security Glazing -  Requirements & Testing Procedures

LPS 1175 Requirements and testing procedures for the LPCB certification and listing of intruder resistant building components, strongpoints, security enclosures and free-standing barriers

EN 356         Glass in building - Security glazing - Testing and classification of resistance against manual attack.

LPS 1175 and 1270 Tool Categories   Testing procedures for the LPCB approval





Latest News

Armoury Security

Architectural Armour were commissioned to provide ballistic resistant products for a new armoury at a UK International Airport.

                   Armoury handgun and ammunition pass through hatch  Ballistic Armoury Doors  Ballistic Armoury Drawer. for wepons transfer.j

Read more

London Bureau De Change Attack

We read it all the time in the news headlines, multiple attackers arrive on stolen mopeds, dressed in black with helmets covering their faces smashing their way through glass shopfronts and glazed screens.

                Bureau de Change London Attacked Glass        Bureau de Change counter & screen

Read more
