SFW5 - Security Fire Rated Transaction Window

After ongoing demand for fire rated transaction windows we have manufactured a stock item that allows protection against fire for 60 minutes; integrity and insulation.

We have incorporated an EI60 FR Window Profile System with an EI60 transaction tray to enable the smooth transition of items within a fire rated wall.

Our standard, stock item requires a wall aperture of 900mm x 1350mm.

Overall unit size 880mm x 1330mm.  Screen size 880mm x 1100mm.  The glazing in our stock item is a laminated glass achieving EI60 and EN356 P6B.  Giving the additional security properties in the event of an attack.  More information on the EN356 standard please click here

Our current stock has a Stainless Steel Finish but if required Polyester Powder Coated Frames can be manufactured on a lead time.

Please note the unit has not been tested as one, the window and transaction tray have been tested separately.  The fire officer/consultant would need to be made aware and deem this acceptable.  To our knowledge there are no full certified transaction windows available on the market.

We can also manufacture bespoke units if you require different fire ratings i.e. 30, 60 and 90 minutes.  We can offer fire rated windows up to 120 minutes however the trays available only reach 90 minutes.

For more information  on pricing and availability please contact our office on 01981 257000 or mailto:info@architecturalarmour.com

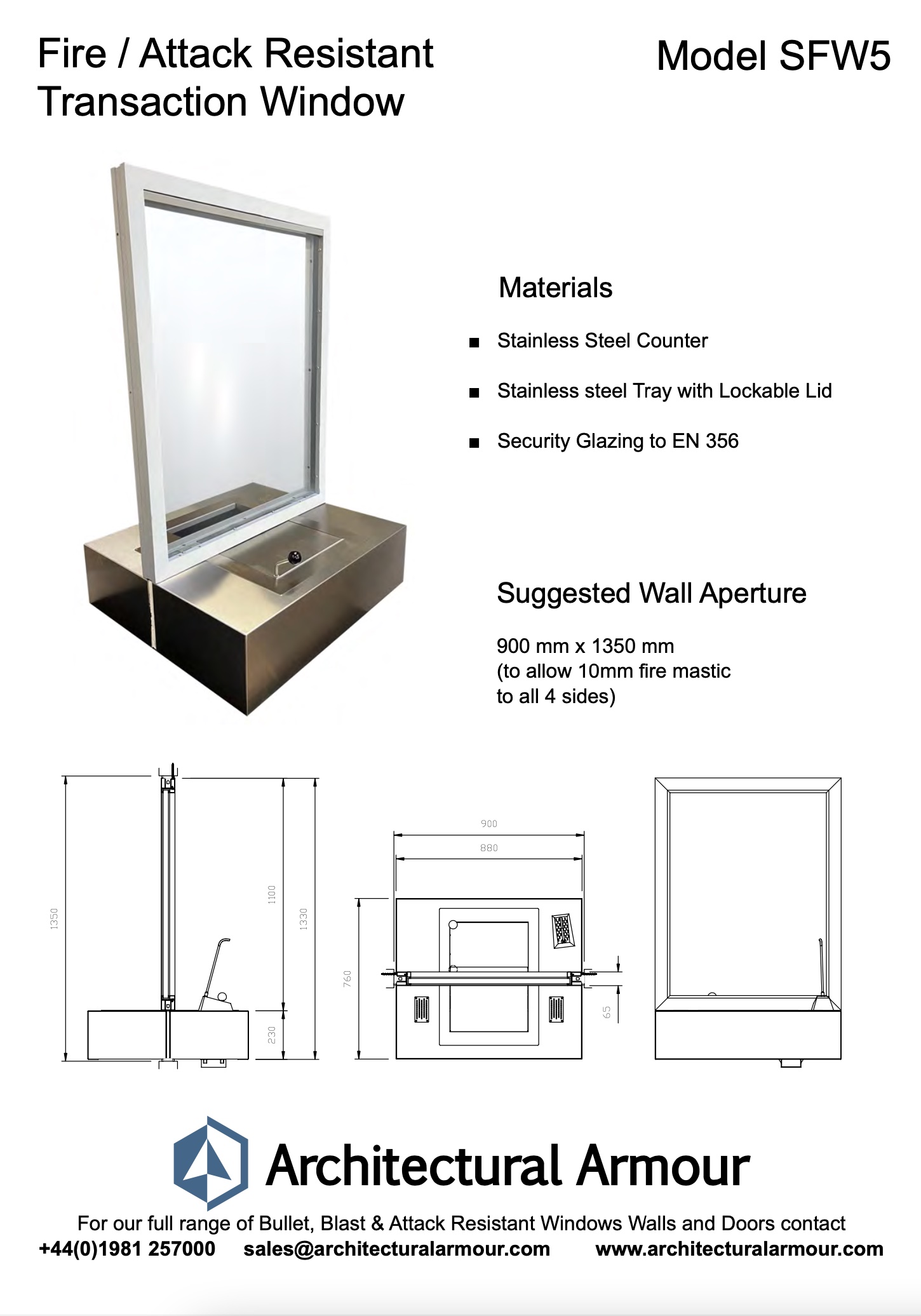

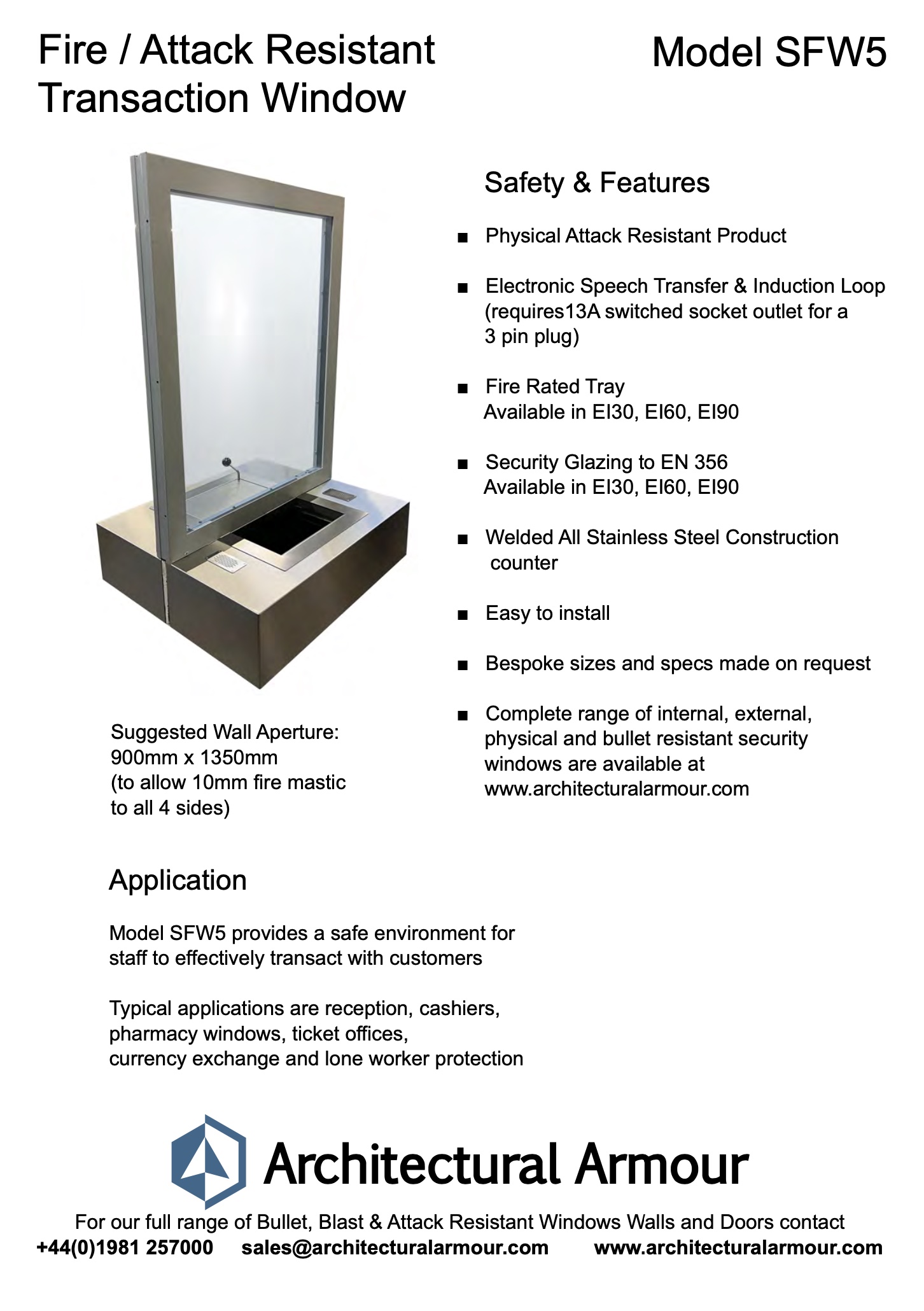

EI60 Fire Rated Security Transaction Window


Please click link to download data sheet for the EI60 Fire Rated Transaction Window

Security Fire Rated Transaction Window


EI60 Fire Rated Transaction Window
