Covid-19 Staff Protection Products - Updated

With the current situation with Covid-19 and lockdown throughout Britain essential shops still need to operate.  We have a number of products currently in stock that can assist with staff protection in these unprecedented times.  Please see below an outline of our products that can help businesses to stay open and function normally.



Ticket Transaction Window SW1 P6B

 Ticket Transaction Window

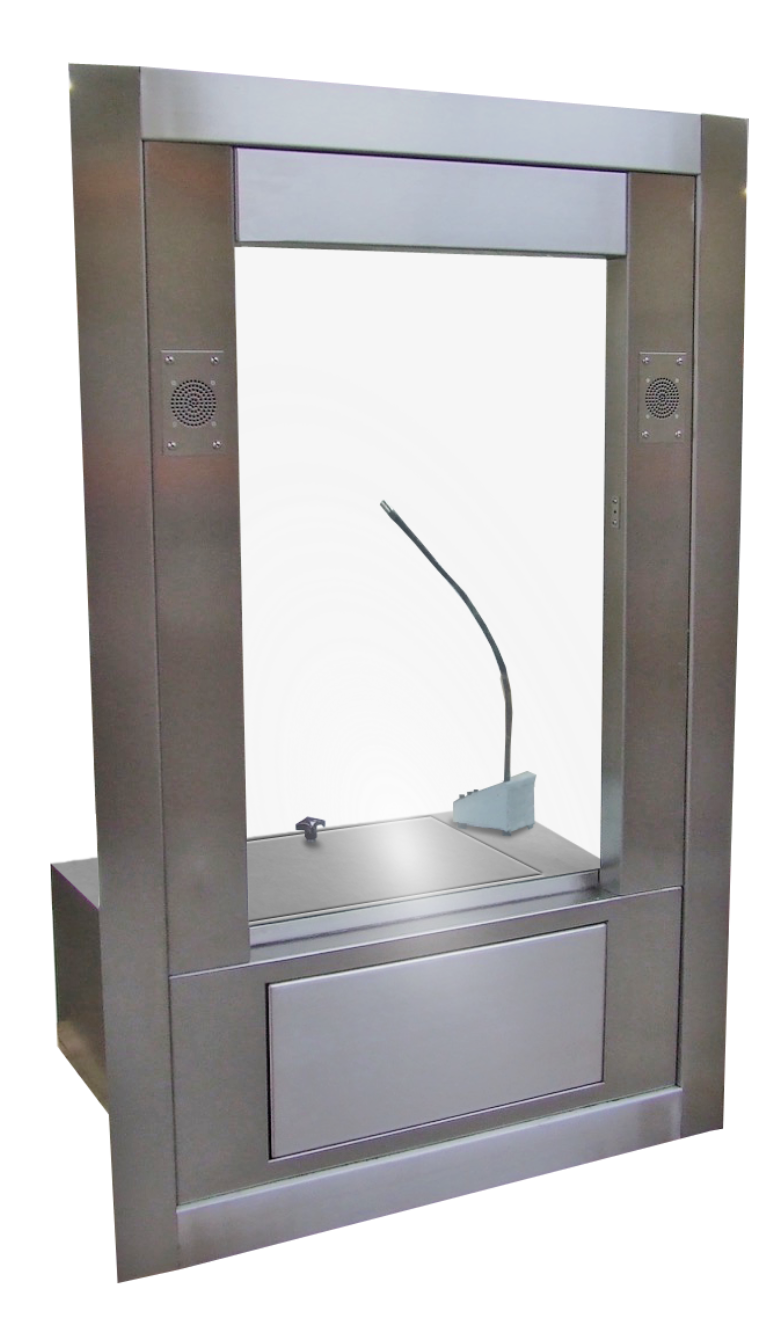

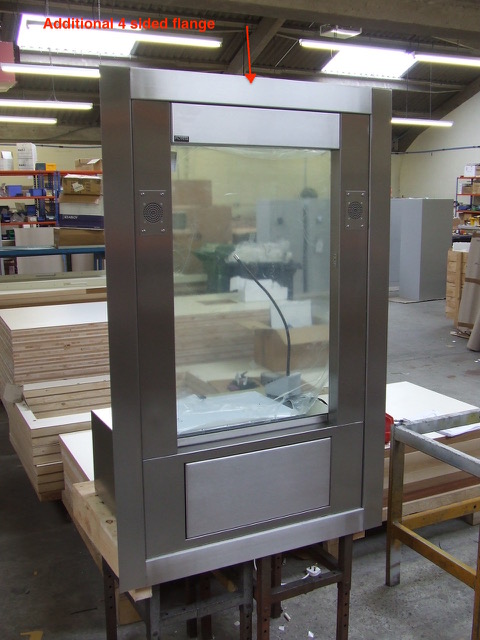

Night Pay Window (NPW)

               Night Pay Window

This unit is suitable for external or internal use.  It incorporates a flat fronted tray and electronic speech transfer meaning customer interaction is 100% safe.  This can be installed into a pre prepared aperture of 705mm x 1185mm.  For further information please click to view the data sheet

Dimensions                       700mm  wide x 1180mm high x 501mm deep

Glazing                                 EN 1063 BR4 / SG1 No Spall

Construction                    Satin Polished  Stainless Steel

Communication              Electronic speech transfer

Clear Pass Through       415mm wide x 155mm high x 250mm deep

The night pay window is typically used in petrol stations, pharmacies and out of hours/lone work stations.  To find out prices, please contact our offices on +44(0) 1981 257000 or mailto:info@architecturalarmour.com

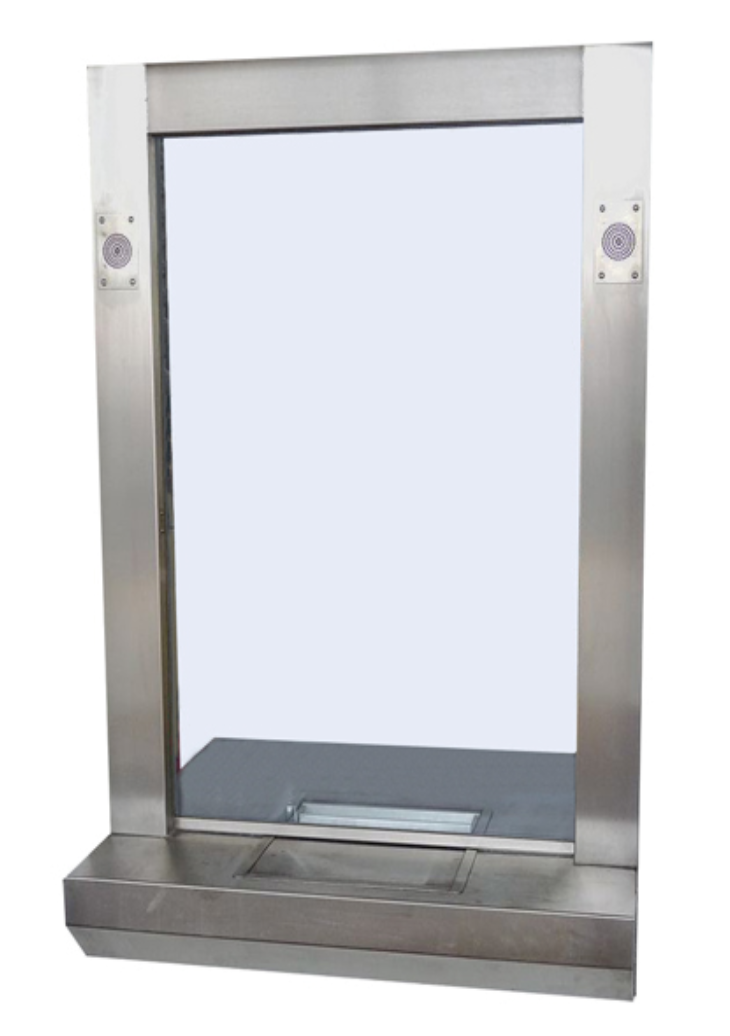

Bullet Resistant Transaction Window (BSW)



 bullet window

Alternatively we can offer a BSW as per the image below.  Once again this is suitable for internal or external applications and offers the same electronic speech transfer as the NPW.  Glazed with BS EN1063 BR4/ SG1 bullet resistant no spall glass which is designed to withstand multiple rounds of the calibre .44 Magnum Handgun or one solid Brenneke slug from a Shot Gun.

The unit is also equipped with a Deep Tray complete with lockable sliding lid allowing you to pass larger items up to 300mm wide.



Dimensions                       700mm  wide x 1100mm high x 520mm deep

Glazing                                 EN 1063 BR4 / SG1 No Spall

Frame                                   Satin Polished  Stainless Steel

Communication              Electronic speech transfer

Tray                                        Deep Tray with locking lid

Capacity                             320mm wide x 130mm deep

For further information please click to view the data sheet  or contact our staff on +44(0) 1981 257000 or mailto:info@architecturalarmour.com

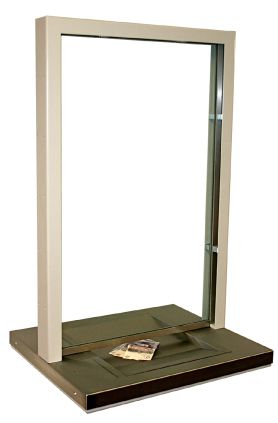

Security Transaction Windows (SW1 and SW2)







Ticket Transaction Window SW1 P6B                       Ticket Transaction Window

security transaction window

Architectural Armour hold stock of 2 versions of physical attack resistant cashier's windows.  Primarily designed for internal use these versatile security  windows offer a cost effective way of transacting with the public while maintaining the safety of the staff.  The primary difference between the SW1 and SW2 is the size and capacity of the transaction tray, the SW1 is fitted with a shallow cash and document tray whilst the SW2 has a combination tray which can be used to pass larger items.

Glazing           EN356 P6B Laminated attack resistant glass

Size                   600mm wide x 952mm high x 520mm deep

Frame              Manufactured from mild steel

Colour            Polyester powder coated RAL 7035 Light Grey

Base                 Stainless steel counter over mild steel base

Tray                  Cash and Document Tray

Capacity        320mm wide x 24mm deep Documents to A3

Speech            Natural speech transfer through mullions

For further information on the SW1 please click to view the data sheet

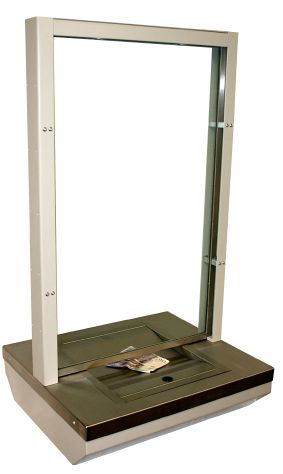

The SW2 is virtually the same as the SW1 but with the inclusion of the cobination Tray the height of the unit increases;

Glazing            EN356 P6B Laminated attack resistant glass

Size                    600mm wide x 1052mm high x 520mm deep

Frame               Manufactured from mild steel

Colour              Polyester powder coated RAL 7035 Light Grey

Base                  Stainless steel counter top over mild steel base

Tray                   Combination Tray, with sliding lid

Capacity         Above 320mm wide x 24mm deep Documents to A3

Capacity         Lower Section for larger items

Speech             Natural speech transfer through mullions

For further information please click to view the data sheet   or contact our staff on +44(0) 1981 257000 or mailto:info@architecturalarmour.com

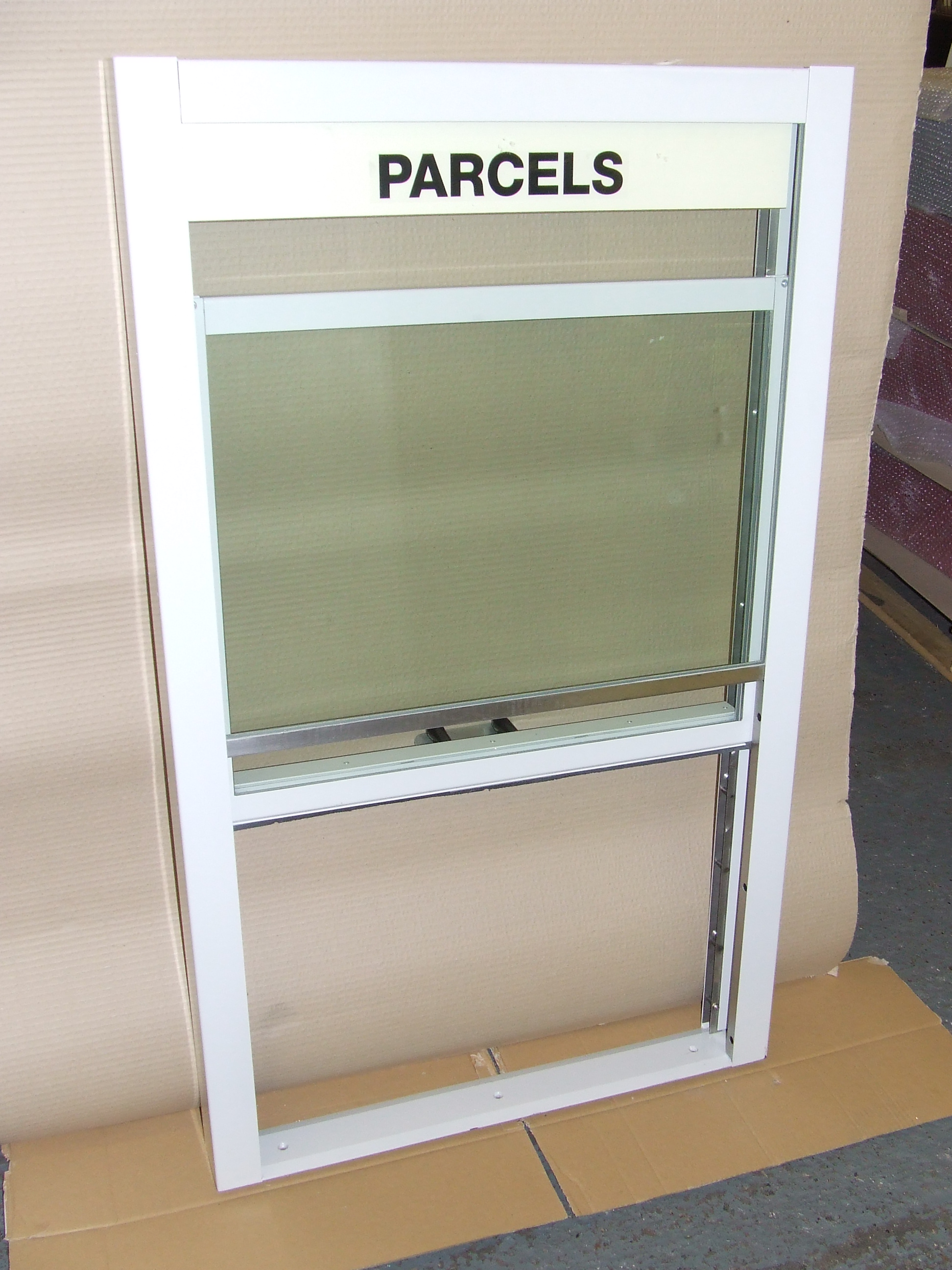

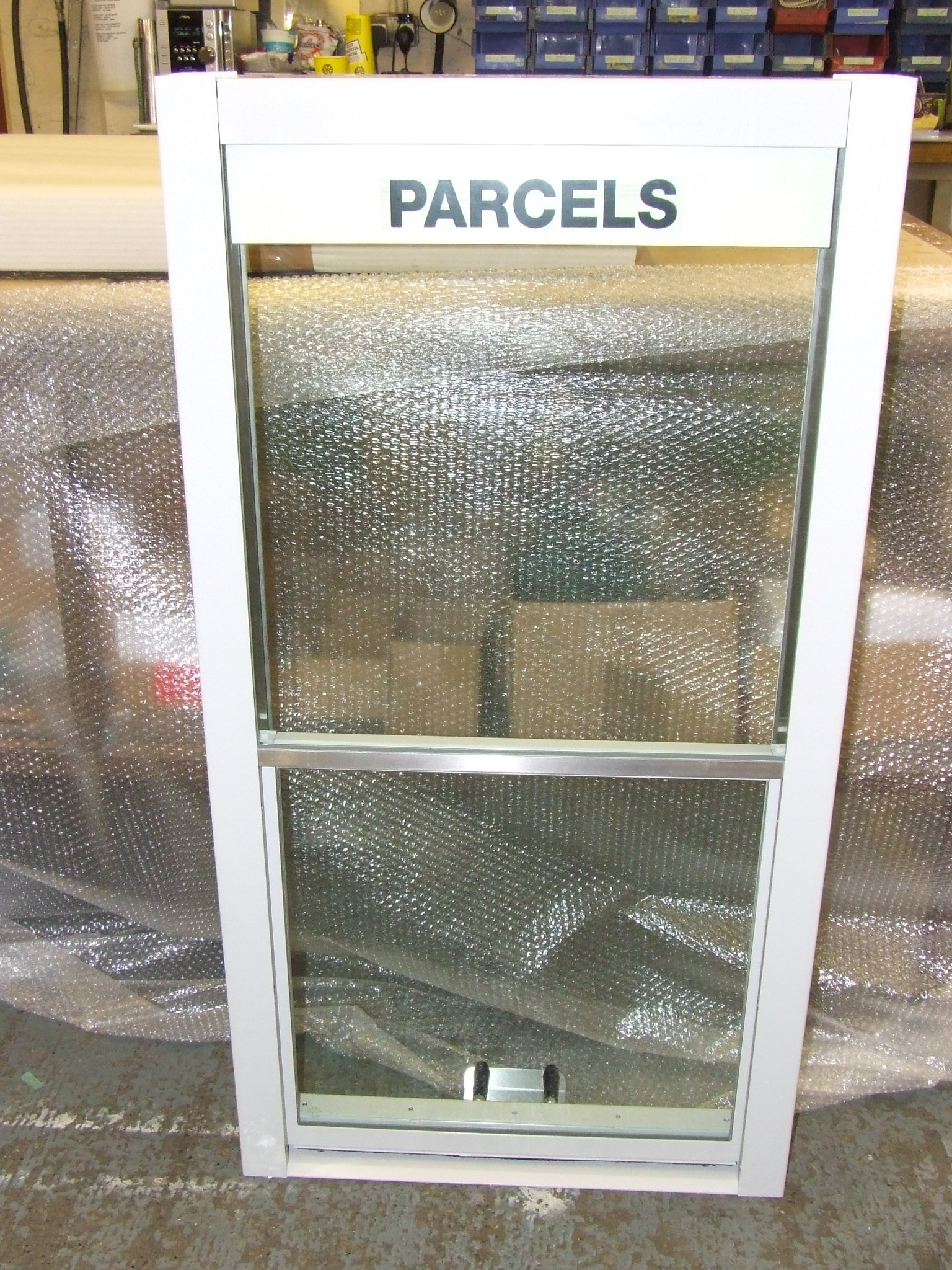

Parcel Hatch

Architectural Armour also carry stock of mild steel vertical sliding parcel hatches alowing the safe transfer of packages or larger items between two areas.  Useful for protection during Covid 19 but also for general threat of physical attack

Standard parcel hatch available 565mm wide x 1200mm high.

Manufactured from Mild Steel.  Finish Polyester Powder Coated RAL Colour Grey

  parcel hatchvertical sliding hatch



Individual Tray Sales

If you do not have the option to install a new transaction window but have a screen our counter in situ you may wish to consider a transaction tray.  We have a variety of different trays available from stock that could assist with you continuing to trade;

CASH SCOOPS

The Cash and Document Tray pictured below is featured in our Attack Resistant Transaction Windows, Model SW1.



Cash and Document/Shallow Scoops

 shallow cash and document tray dimensions



370mm wide x 420mm long, Pass Through: 320mm x 24mm   Full Product Details

Portrait Cash Scoop

       potrait cash scoop dimensions

250mm wide x 290mm long,  Pass Through: 220mm x 25mm    Full Product Details

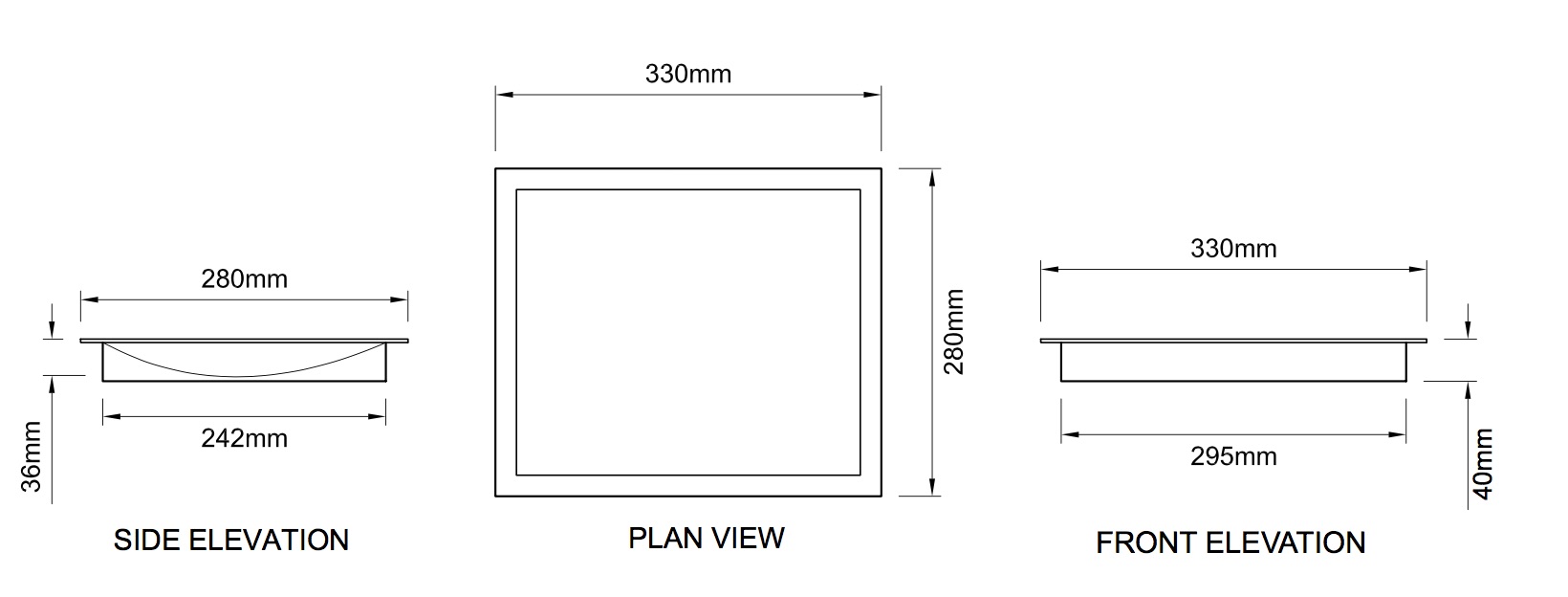

Landscape Cash Scoop

landscape cash scoop dimensions



330mm wide x 280mm long,Pass Through: 290mm x 36mm   Full Product Details



Where the requirement is to passing larger items such as Cash in Transit boxes, Architectural Armour Ltd have a range of Secure Cash transfer units including an Electric BTU.

CASH TRAYS

Combination Tray

The Combination tray in its normal closed position enables the transfer of cash and documents across the recessed sliding lid. The staff have the ability to lift and retract the lid to reveal a larger void below, which is suitable for transferring packets, small goods and larger documents.



To view the Data Sheet on the Combination Tray, please click the link

The Combination Tray pictured above is also featured in our Cashier Window Attack Resistant Transaction Windows, Model SW2.

Deep Tray

The Deep Tray has the same external dimensions as the Combination Tray but has a flat locking lid rather than a recessed one. It was principally designed for passing goods and cash between internal and external applications, the lid can be locked in the closed position for security, also minimising draughts.



For more information, including dimensions, please click the link to the Data Sheet

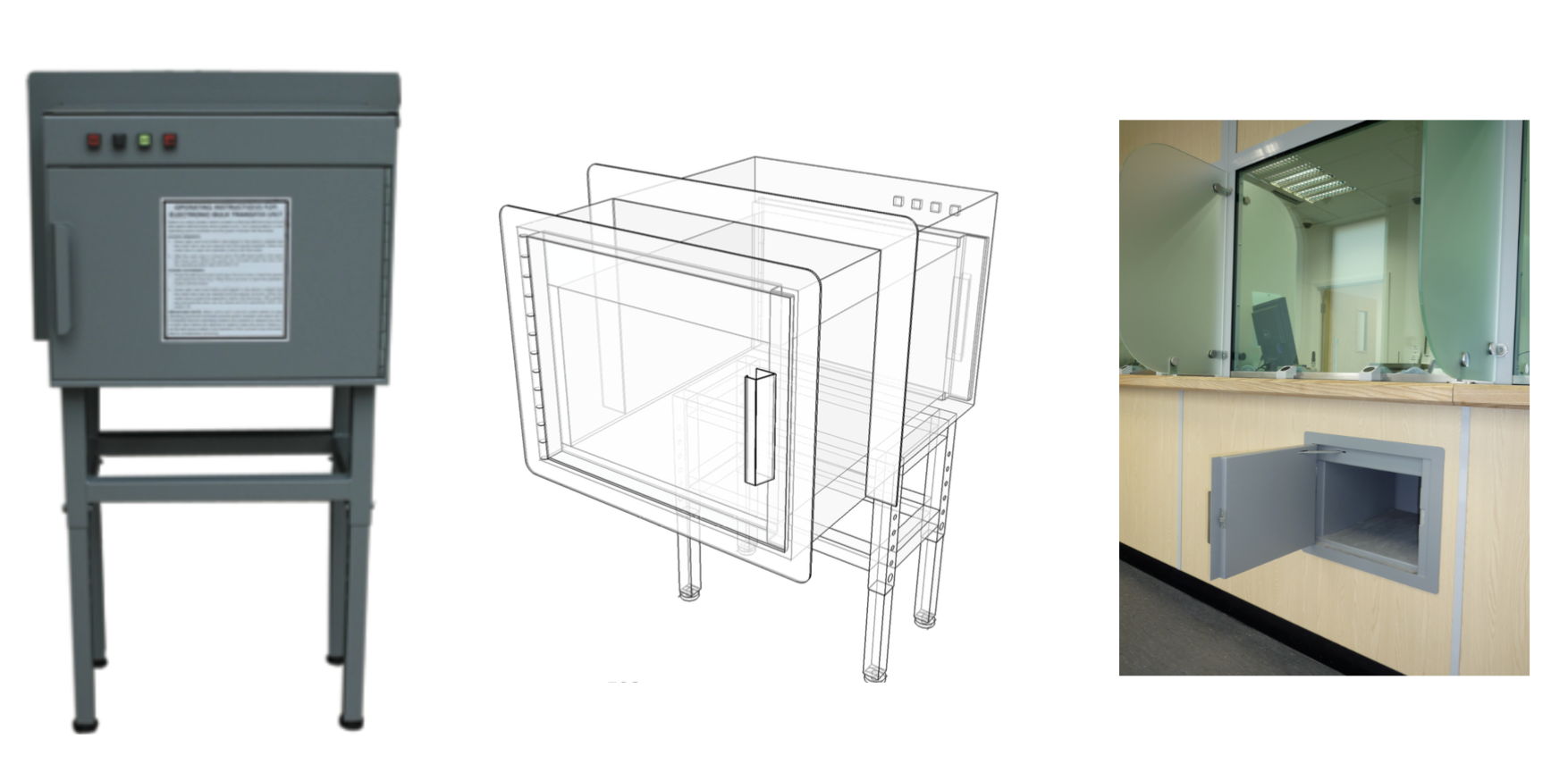

ELECTRIC BTU



electric btu

Architectural Armour can offer our standard Electric BTU for the safe transfer of Cash In Transfer and larger items between the secure and non secure areas of a work environment.  Secure Transfer Units are an essential part of any security system and with the interlocked doors make transaction quick and easy whilst maintaining operational security; the addition of indicator lights allows staff to manage cash transfer easier.

The Electric Bulk Transfer Unit can also be supplied with our without adjustable legs.  The legs allow for the unit to be freestanding and adjusted to the correct operating height dependent on the scenario.

Alternatively the unit can be installed into a wall, below a working counter.  In this situation the legs are not required and a wall aperture of 390mm x 485mm is recommended.

Available in left handed versions the BTU is ideally manufactured to suit all customers needs.

The standard unit has internal dimensions of 275mm x 390mm wide.  A depth of 510mm allows transfer of bulkier items.  Please click to view the data sheet

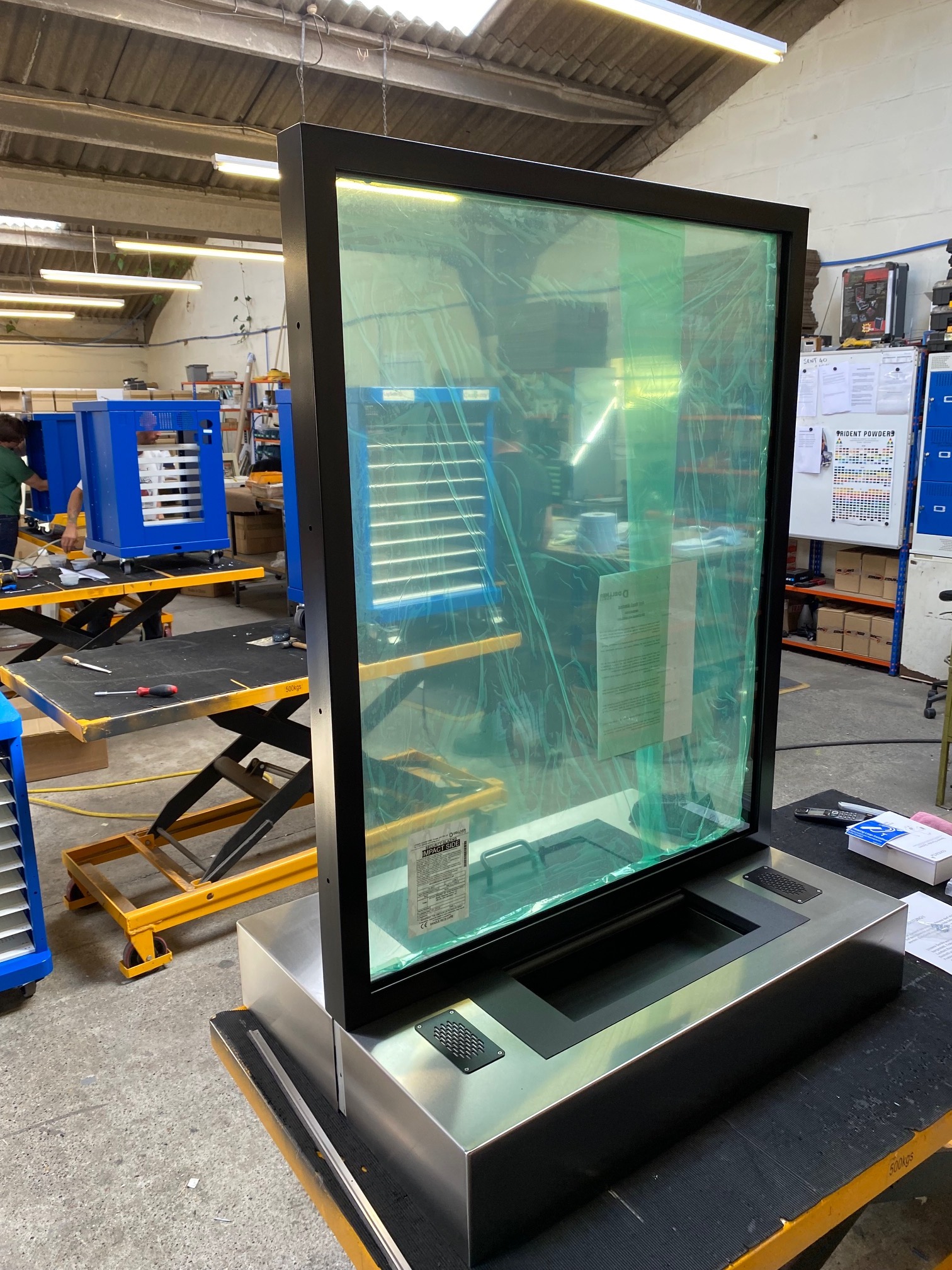

If this unit is not feasible for your application we are able to manufacture bespoke units to suit your requirements.  Please see below images of a large unit we manufactured bespoke for a recent customer in the jewellery industry.

For more information on the product please review the data sheets below or contact our offices on +44(0) 1981 257000 or mailto:info@architecturalarmour.com
