The EN1522/3 FB6 Heritage Door below is specifically tested against a 7.62 x 51 calibre weapon, a Rifle. As you can see from the table below there are many comparisons to the NIJ and UL test standards. For more information on the complete range of test standards, including EN1522/3 please see our technical specifications section.
|
Class Threat Level |
Type of Weapon |
Calibre |
Ammunition |
No of shots |
Velocity (m/s) |
Test Range (m) |
Spacing (mm) |
EN1063 BR6 |
Rifle |
7.62 x 51 |
FJ1/PB/SC |
3 |
830+/- 10 |
10 |
120+/- 10 |
|
NIJ 0108.01 Level III |
Rifle |
7.62 (308 Winchester) FMJ |
FMJ |
5 |
838+/- 15 |
5 |
|
|
UL 752 Level 8 |
Rifle |
7.62 x 51 |
LC/FMJ Military Ball |
5 |
838-922 |
4.6 |

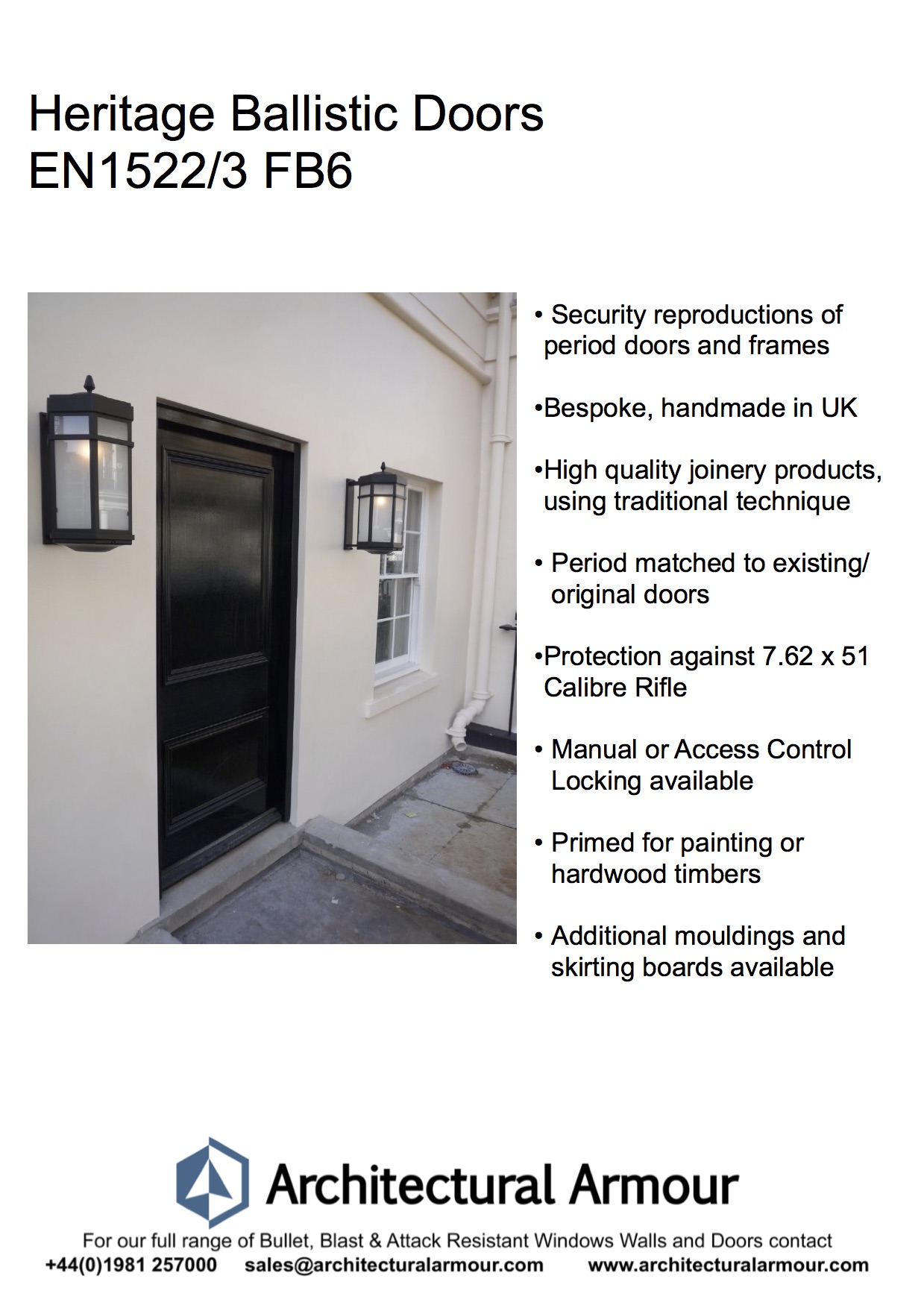

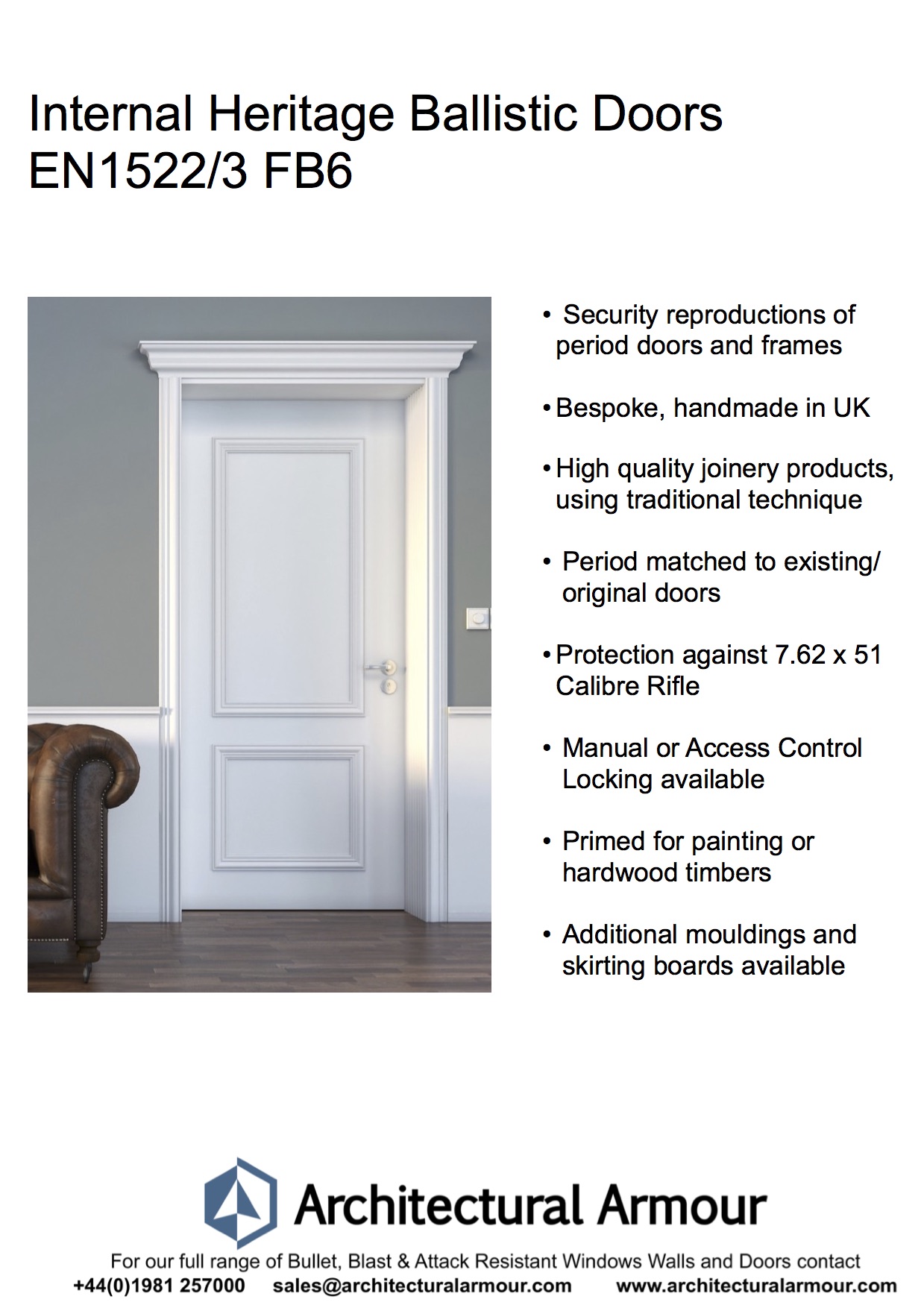

Architectural Armour are able to offer Heritage Style Doors in both internal and external options. They are, like all of our products bespoke and manufactured in the UK. If you have a project that would benefit from such items, please do not hesitate to contact our offices on +44(0) 1981 257000 or mailto:info@architecturalarmour.com. To download the PDFs below, please click on the image below.
We also have other EN1522/3 rated timber bullet resistant doors, including FB2 and FB4. To read more on our bullet resistant doors, please go through to our bullet resistant door page.
For our full range of security doors head back to our security door homepage.
Using experience on previous projects and customers requirements we have designed a split height transaction window offering standing and DDA access to reception and data centre environments.
For more information and pricing please contact our office on info@architecturalarmour.com or +44(0)1981 257000
Read more
We have increased our range of stock transaction windows to six units , ready for express dispatch.
Our range of transaction windows include, physical attack resistant and bullet resistant internal and external models. Please see below an outline of our products.
Architectural Armour are offering standard stock items and bespoke orders to suit. Please contact us on +44(0) 1981 257000
Read more
