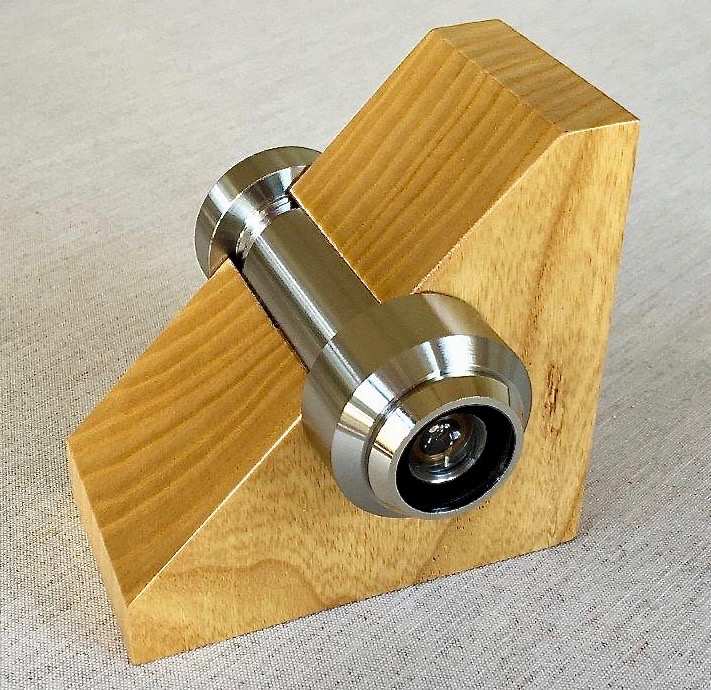

Bullet iconBullet Resistant Door Viewer

Architectural Armour's Bullet Resistant Door Viewer enables you to maintain the ballistic integrity of your security door whilst offering a 170 degree field of vision in it's standard version.  To review the data sheet please click here



                Bulletproof peepholes                    Ballistic Door Viewer

Historically security door manufacturers have been limited to either installing a bullet resistant observation window/vision panel, which is not always appropriate, or compromising the doors security by installing a non ballistic rated viewer.

Our Bullet Resistant Door Viewer has been successfully and independently tested to single shot parameters with the following ballistic levels achieved; EN1063 BR3, BR4, BR5, BR6, BR7, SG1 and NIJ 0108.01 levels II, IIIA and III.

The door viewer is constructed from high grade stainless steel and premium grade commercial optics, which give a crisp, clear 170 degree angle of vision.

It's fully adjustable to suit varying door (or wall) thicknesses from 25mm thick and upwards.  The standard product fits doors between 50mm and 60mm.     A spacer ring is supplied to accommodate doors with thickness between 25mm and 49mm.  By special order the viewer can also be modified for door and wall thicknesses above 60mm.

Standard Size minimum to maximum

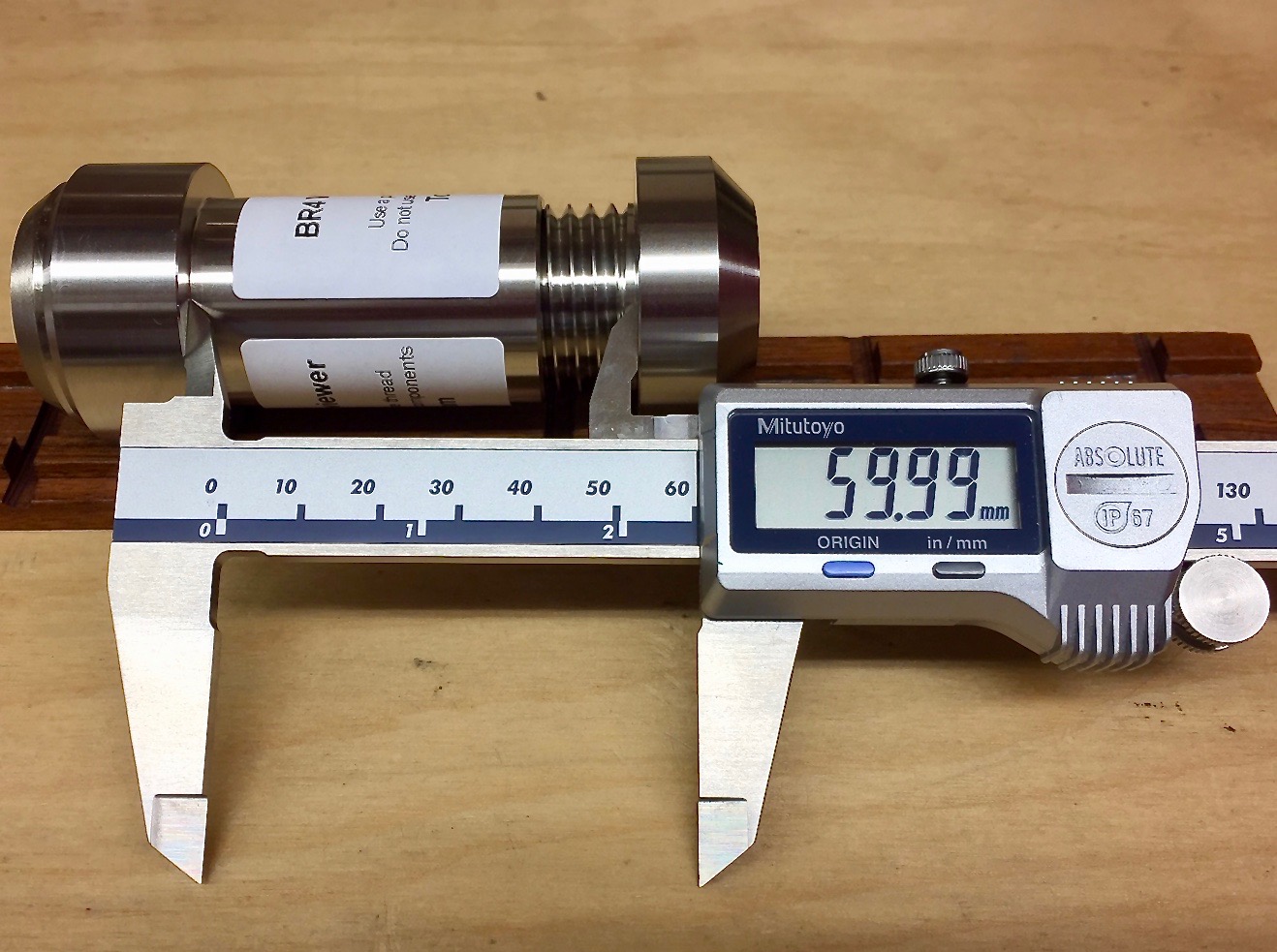

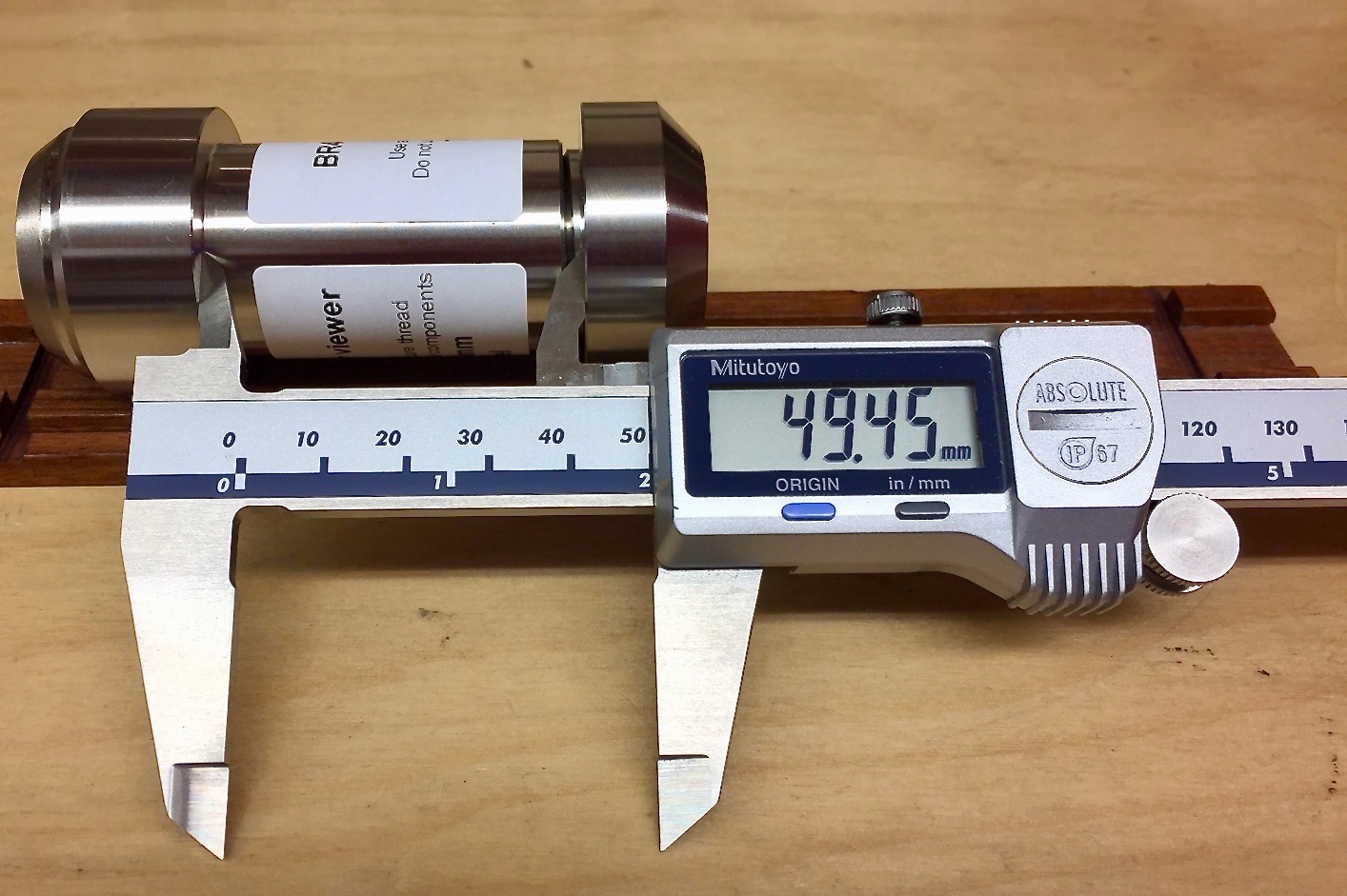

              Ballistic Spy Hole Minimum Standard Size            Ballistic Peep Hole Maximum Standard Size

Non Standard Sizes

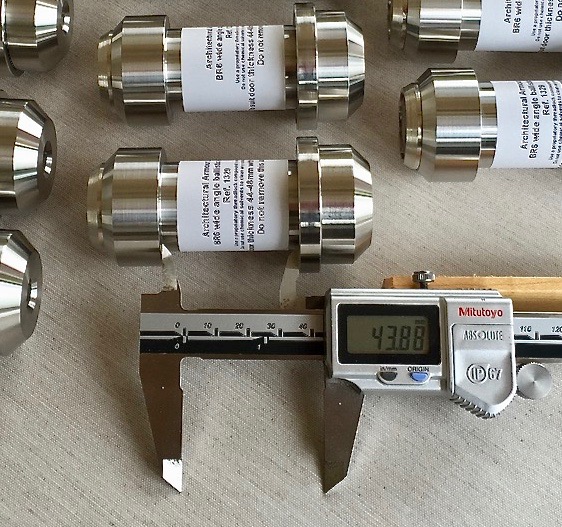

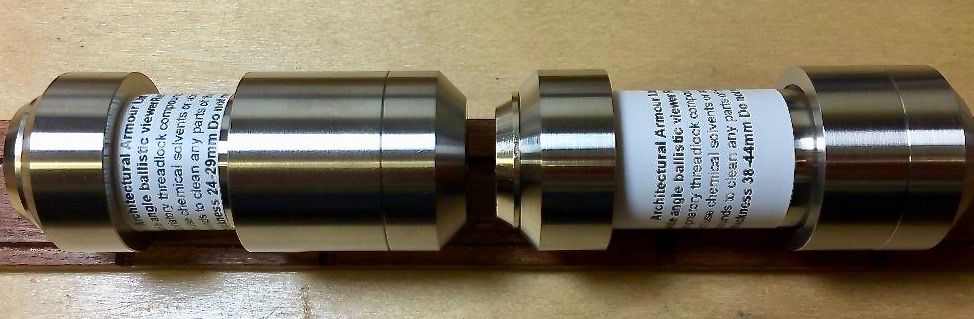

           The photo below shows viewers with spacers of varying sizes to accommadate fitting into doors of below 50mm thick

            Ballistic Spyholes with spacers for doors below 50mm thick

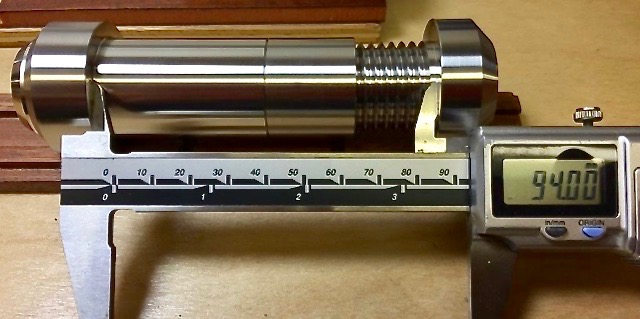

         The photo below shows a viewer with inner body extension of varying sizes to accommadate fitting into doors or walls of above 60mm thick

           Inner Body Extension for doors over 60mm thick



To find out more information on our range of viewers, including pricing, please contact our Technical Team on +44(0) 1981 257000 or mailto:info@architecturalarmour.com

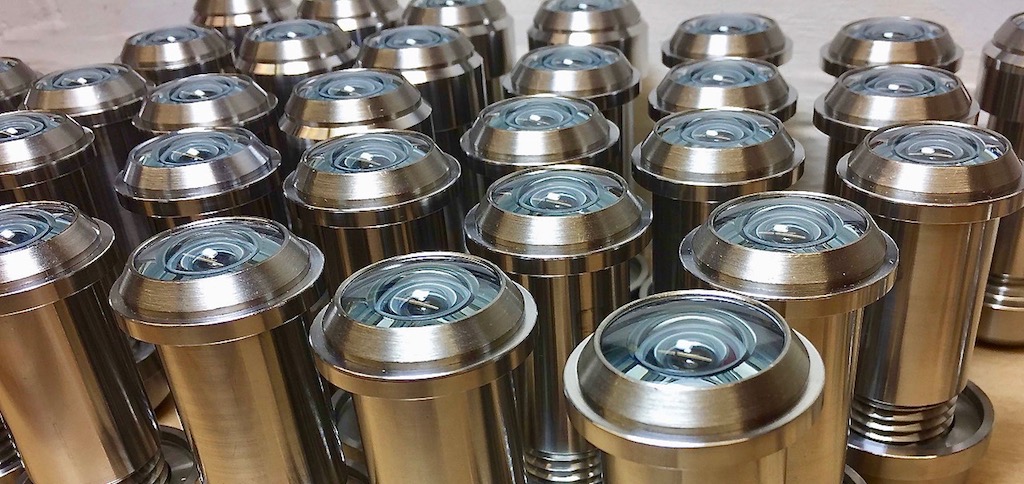

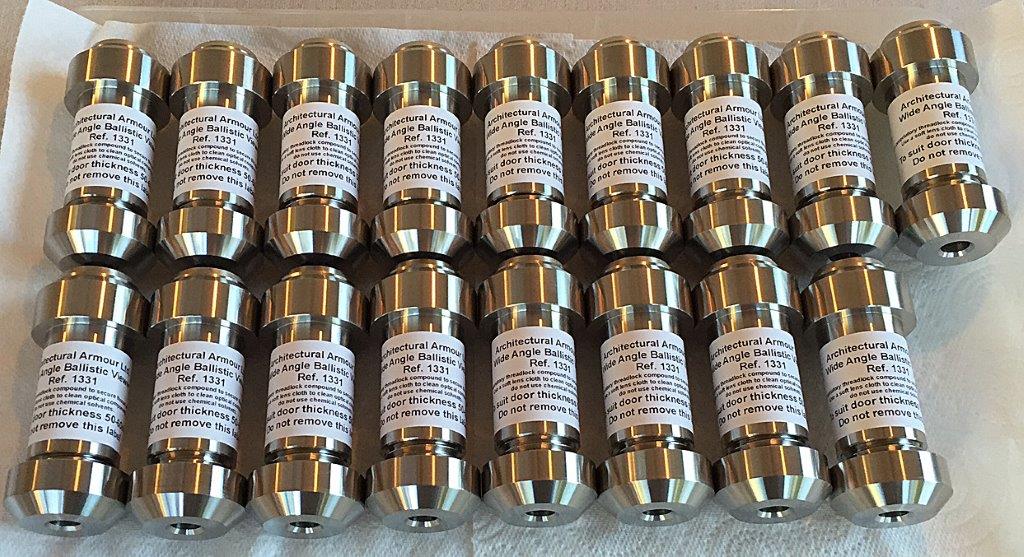

          The Photo below shows standard ballistic door viewers.

          Ballistic Door Viewers / Peepholes

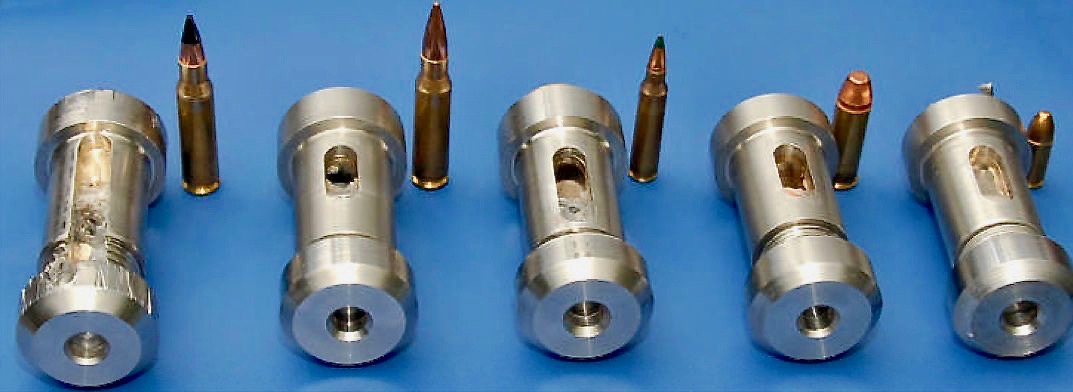

          The photo below shows our range of door viewers after single shot testing.

           Ballistic Test Line UP

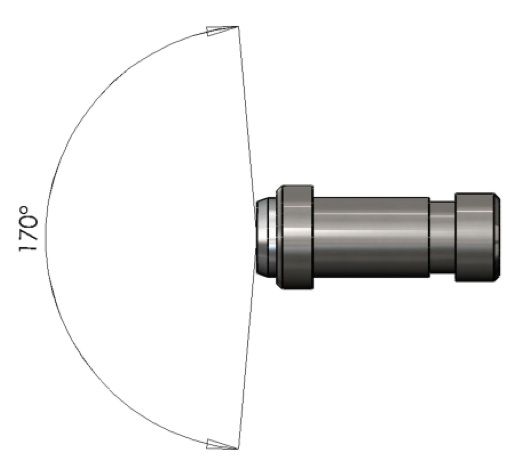

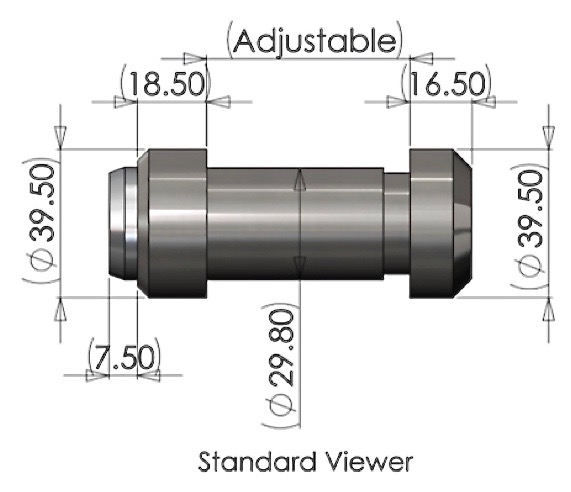

       Ballistic Spy Hole Visability Radius         Ballistic Door Viewer Dimensions

We can modify our viewers to meet customer needs, for example machining down outer bodies for use in sliding doors or simply changing the colour.

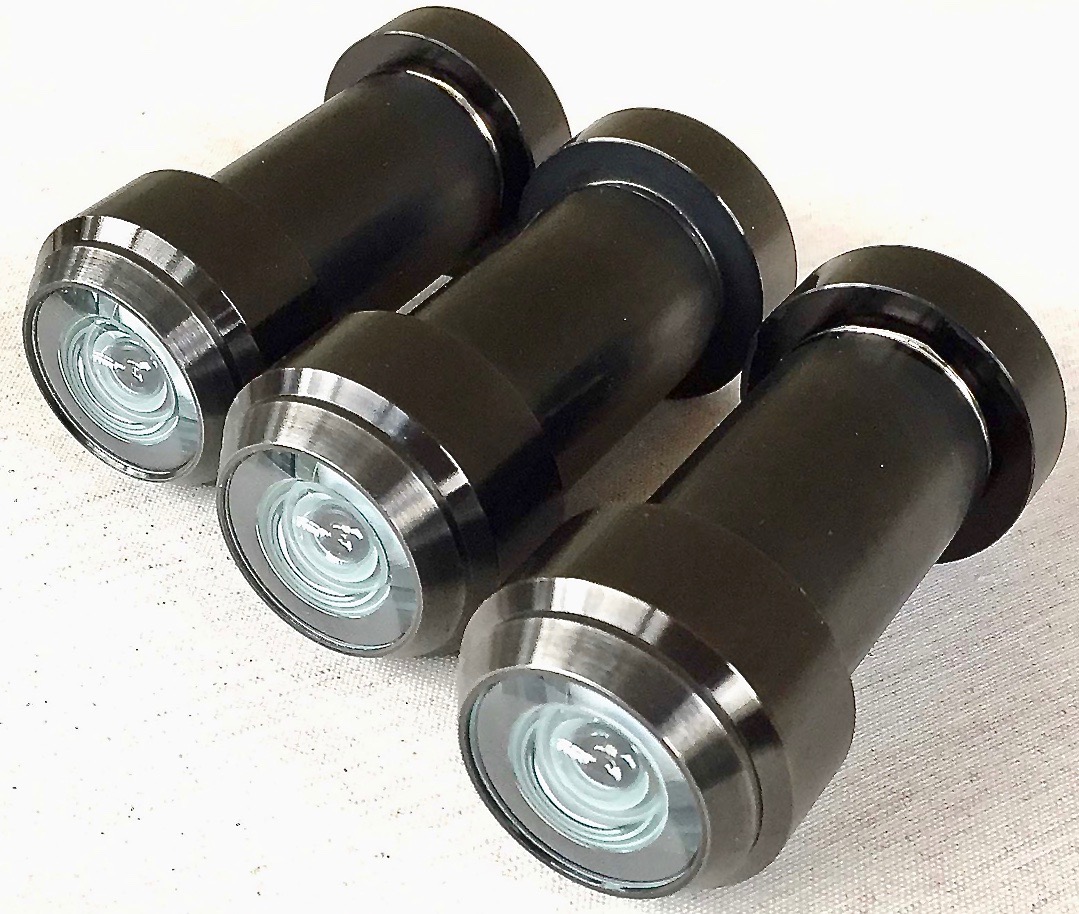

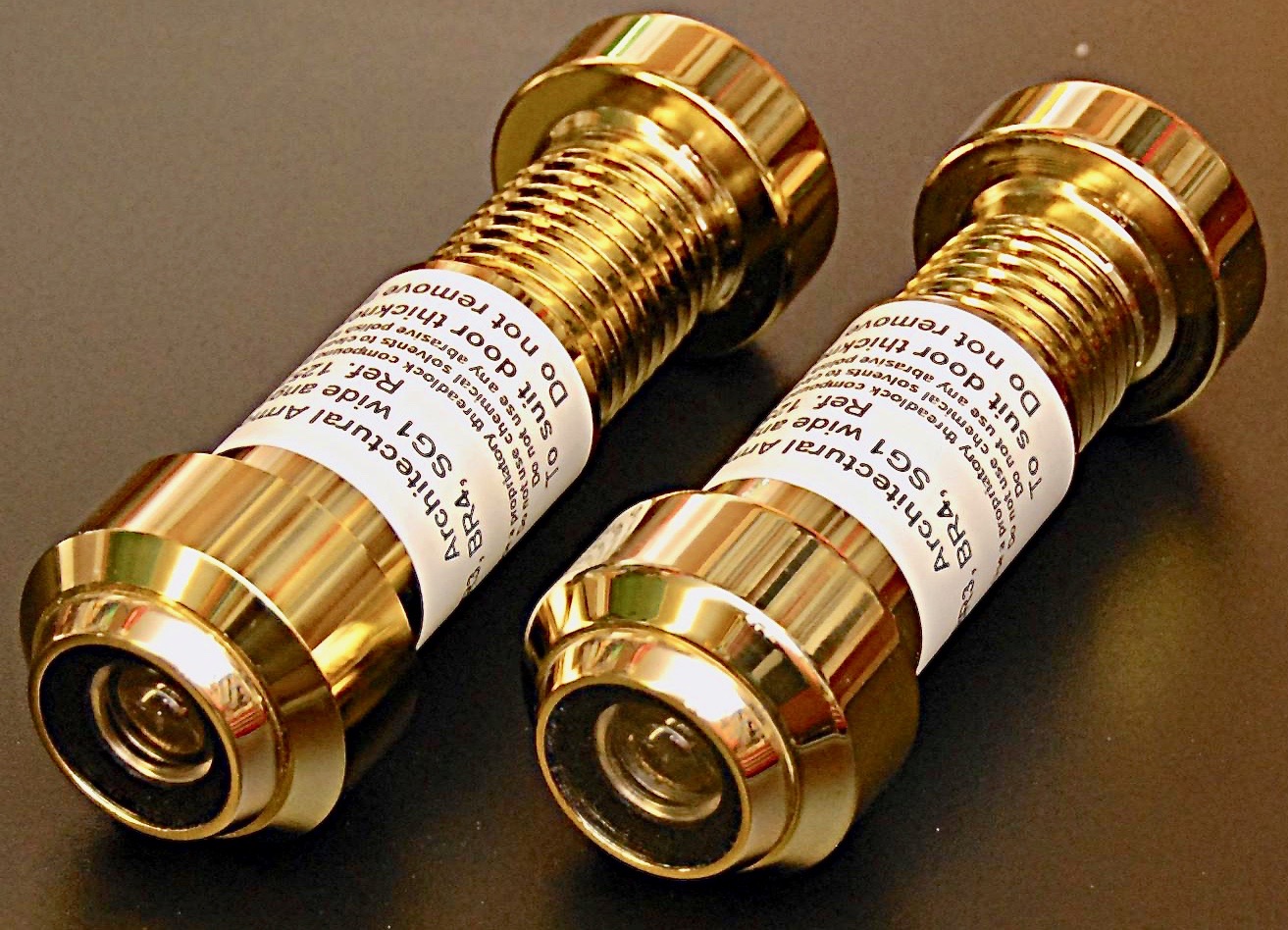

        Black Ballistic Door Viewers      Brass ballistic door viewers

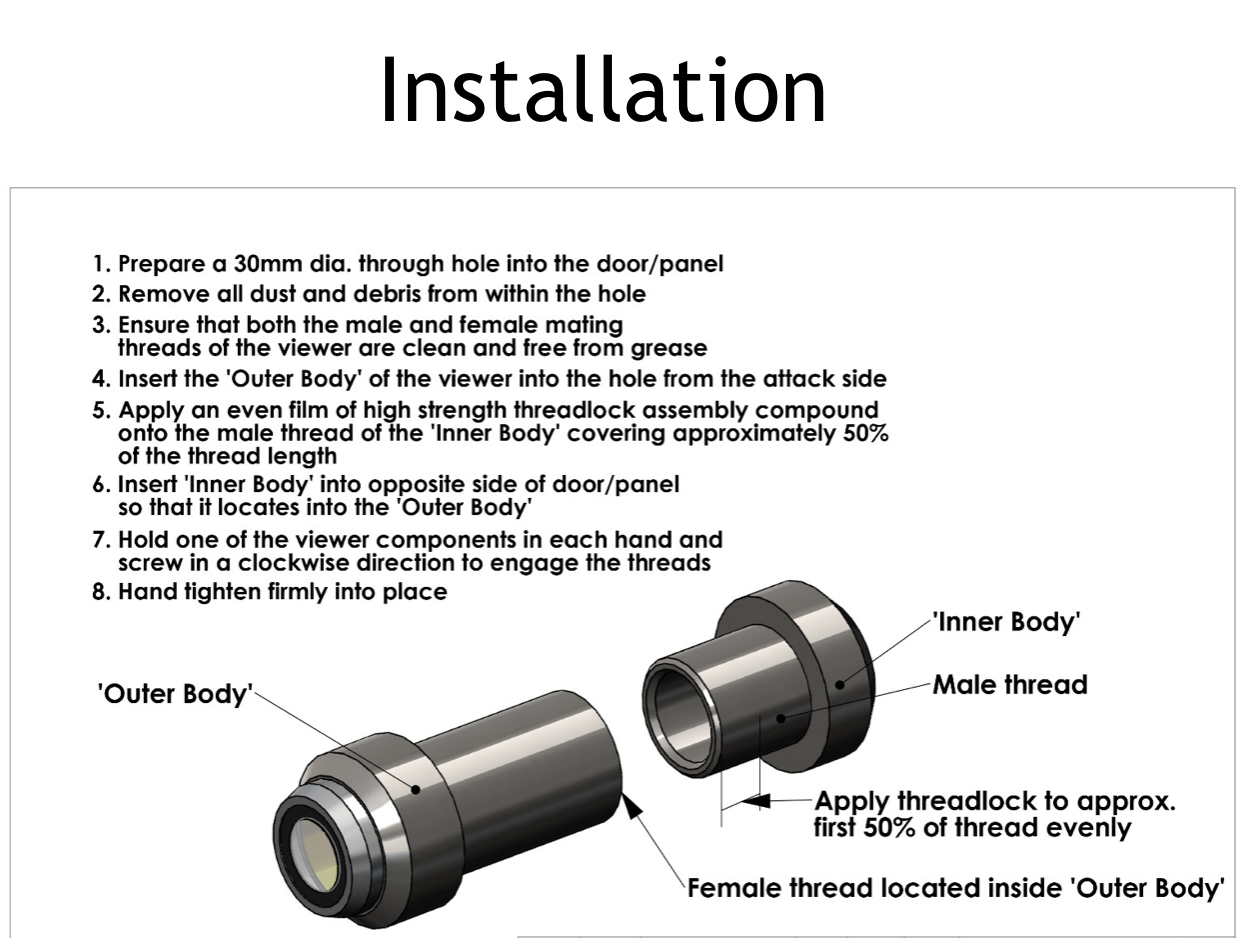

            Installation Guide for Ballistic Door Viewers
